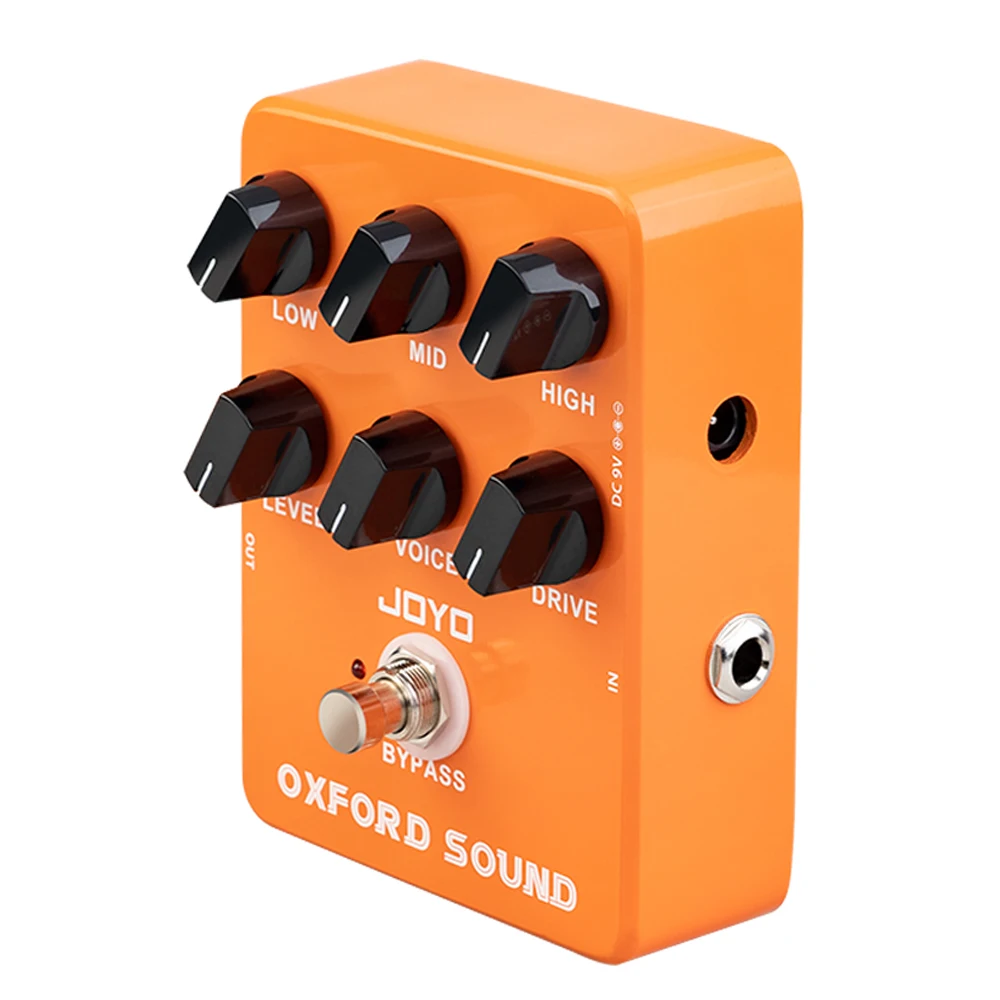

JOYO JF-22 OXFORD SOUND Clean Distortion Pedal for Electric Guitar Pedal Classic British Rock of the 70' s Guitar Effect Pedal

Description:

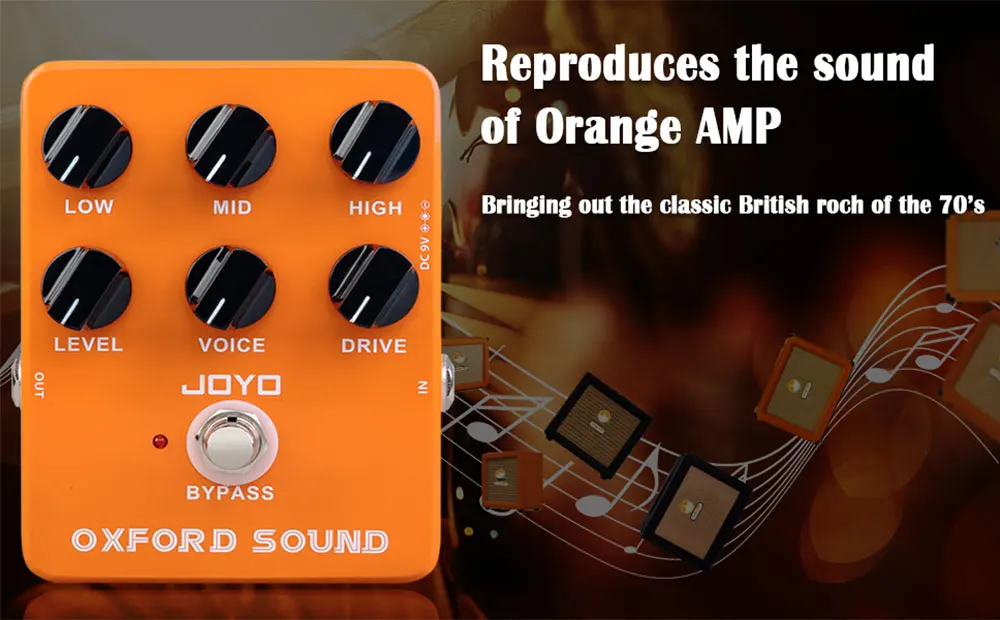

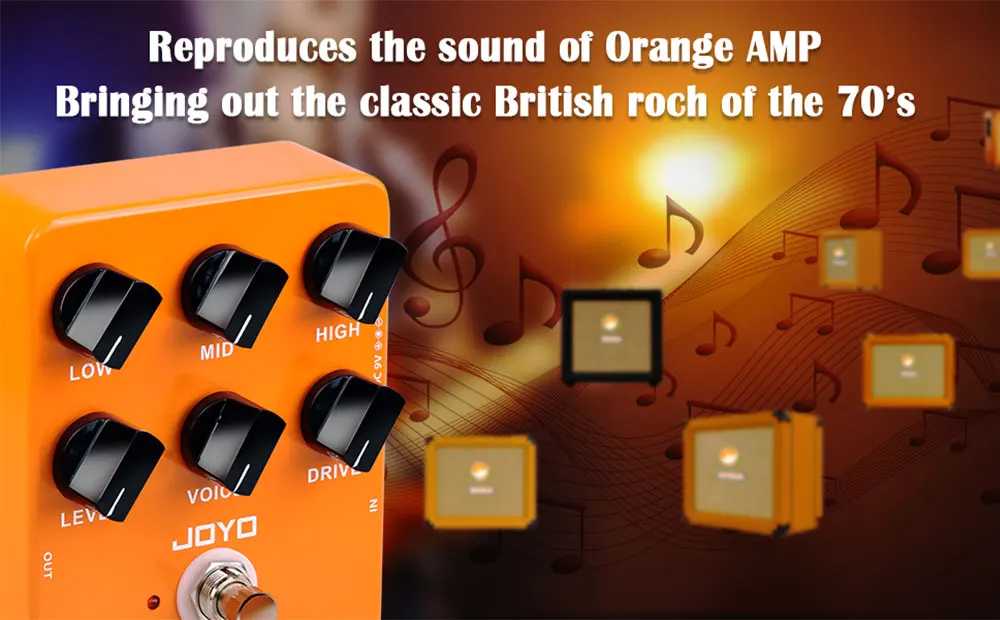

OXFORD SOUND recreates the tone of an ORANGE@ amp, bringing out the classic British rock of the 70' s. It offers more versatility, which performs great for clean, distortion and more. True Bypass design minimizes tone loss.

Specifications:

INPUT: 1/4" mono audio jack (impedance: 1 M Ohms)
OUTPUT: 1/4"mono audio jack (impedance: 1K Ohms)

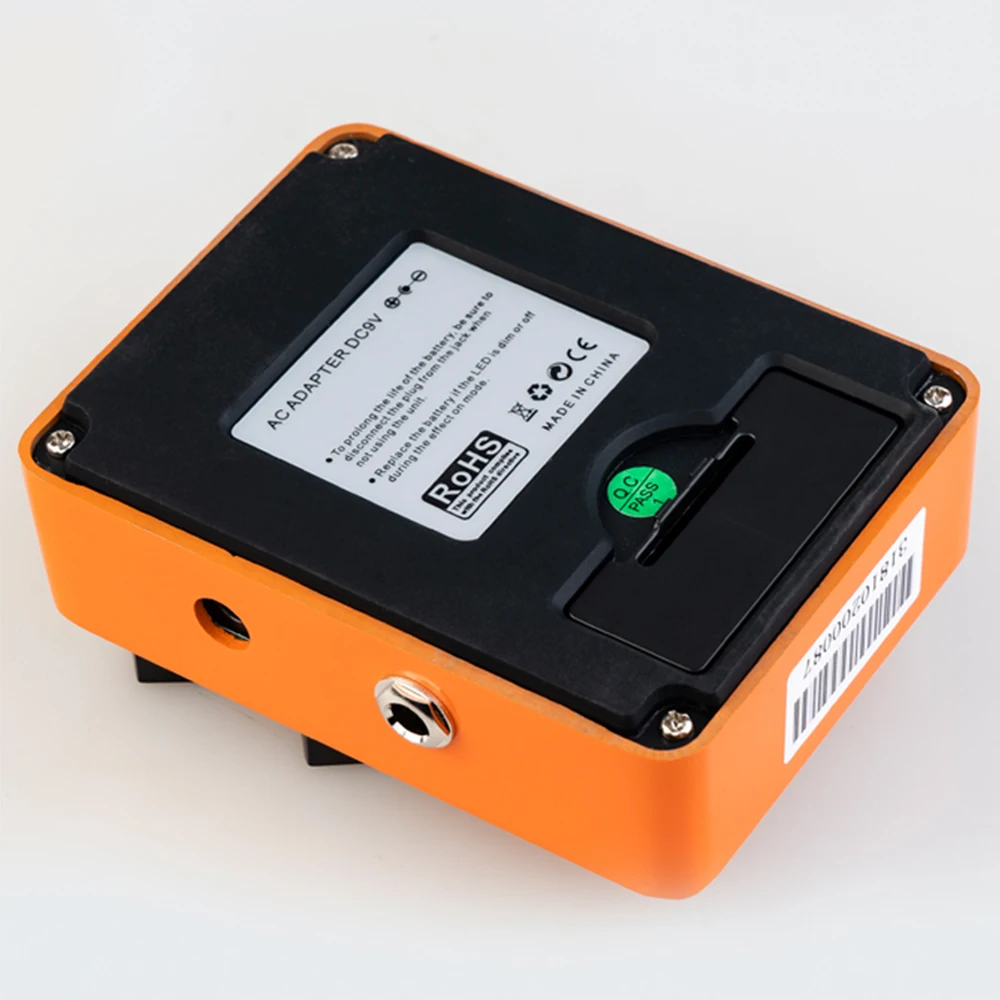

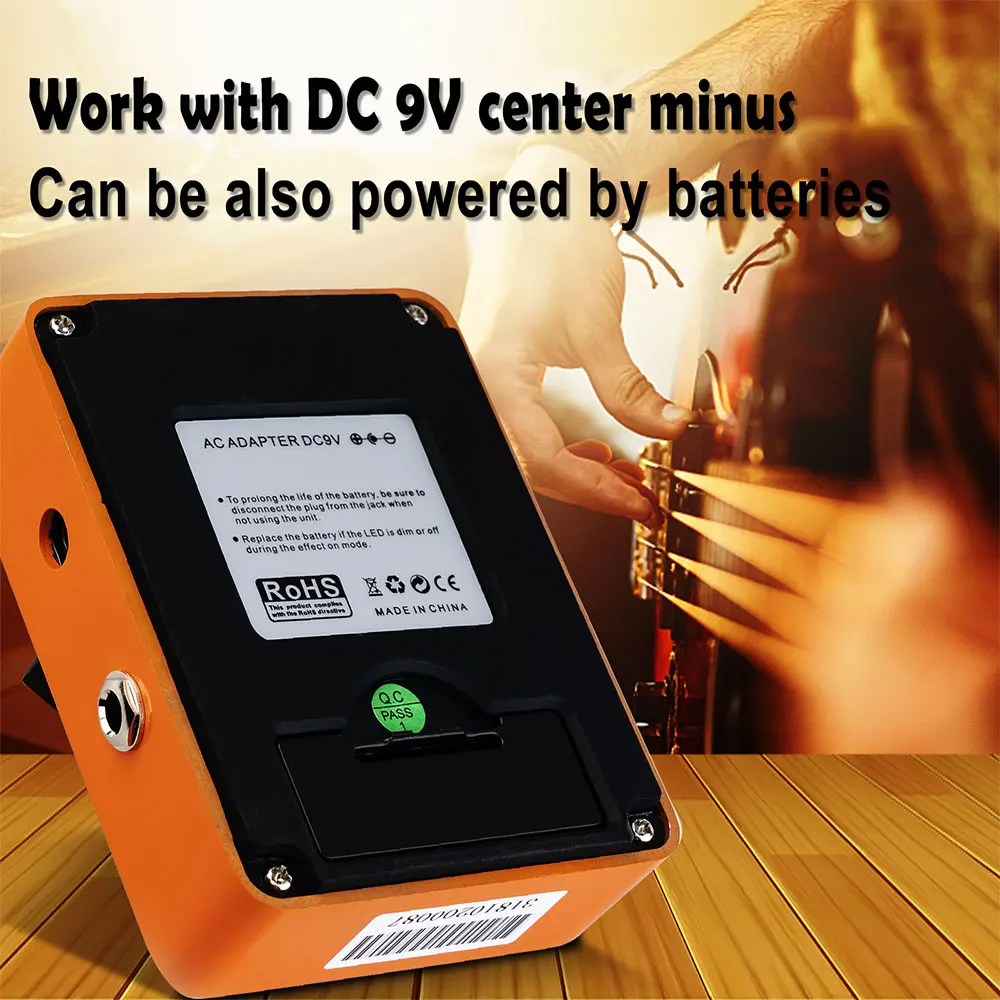

Power requirements: 9V 6F22 battery/ DC 9V power adapter (center minus plug)
Current draw: 6mA
Material: Aluminium alloy with stoving varnish.

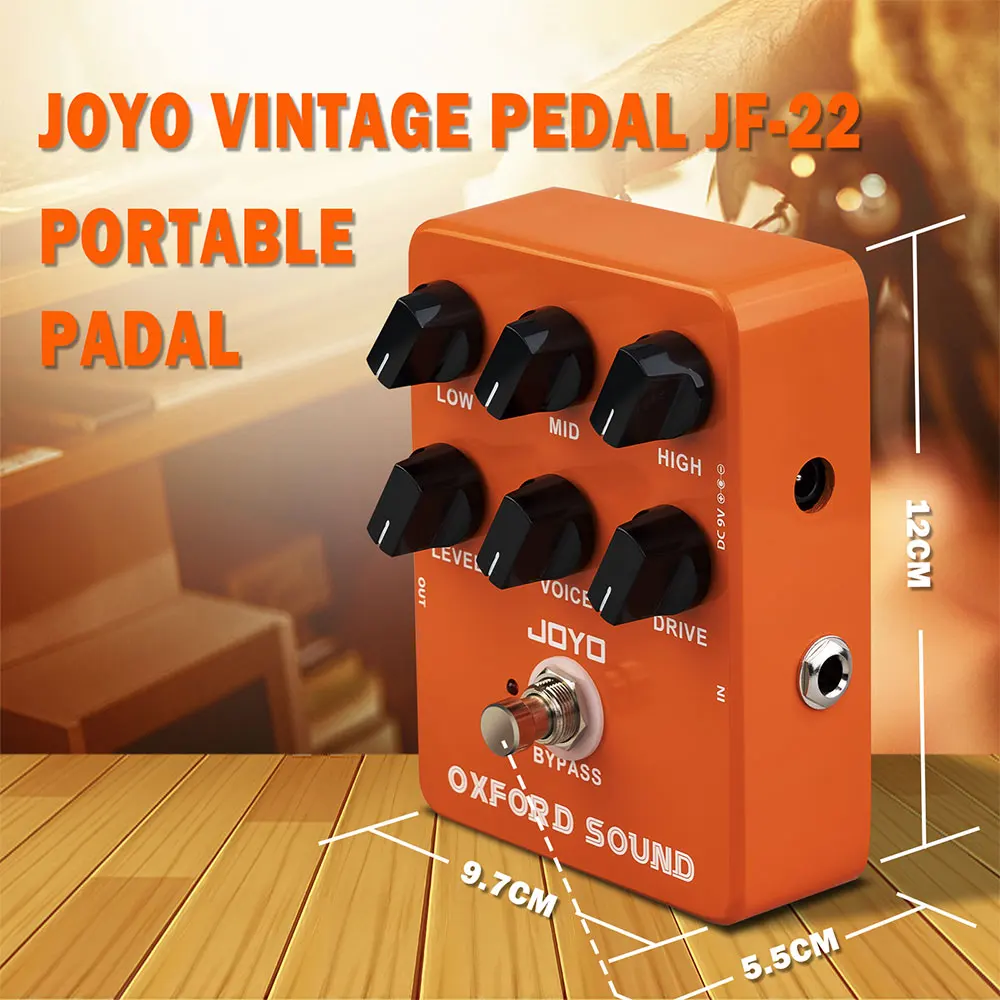

Dimensions: 12.0cm(L)x9.7cm(W)x5.5cm(H)
Weight:390g

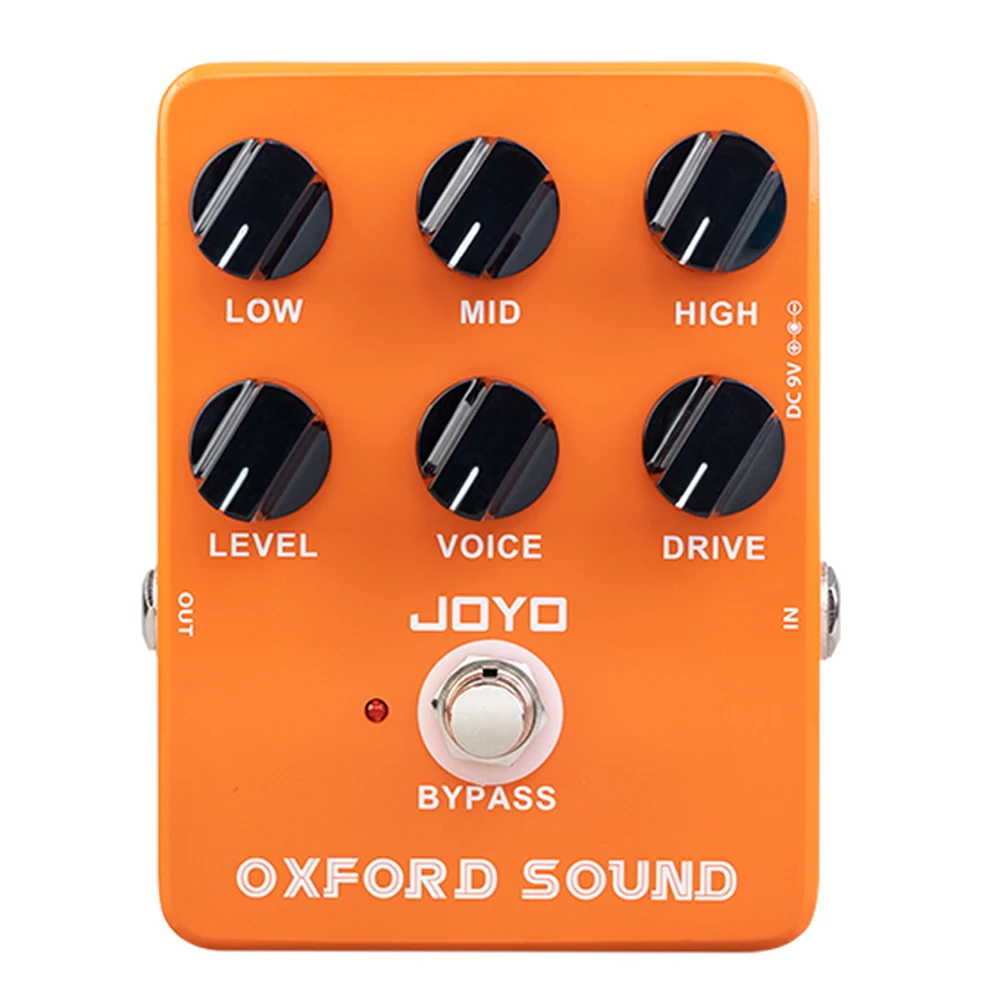

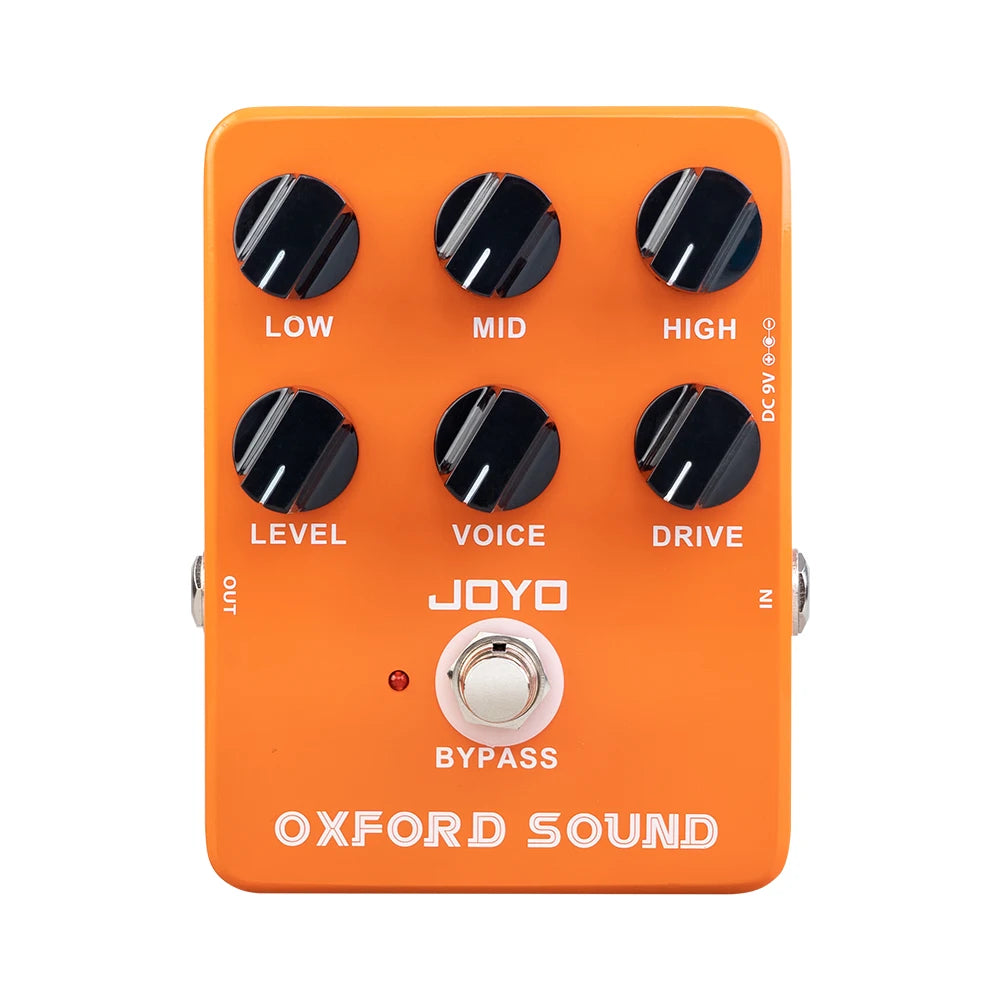

Panel Instruction:

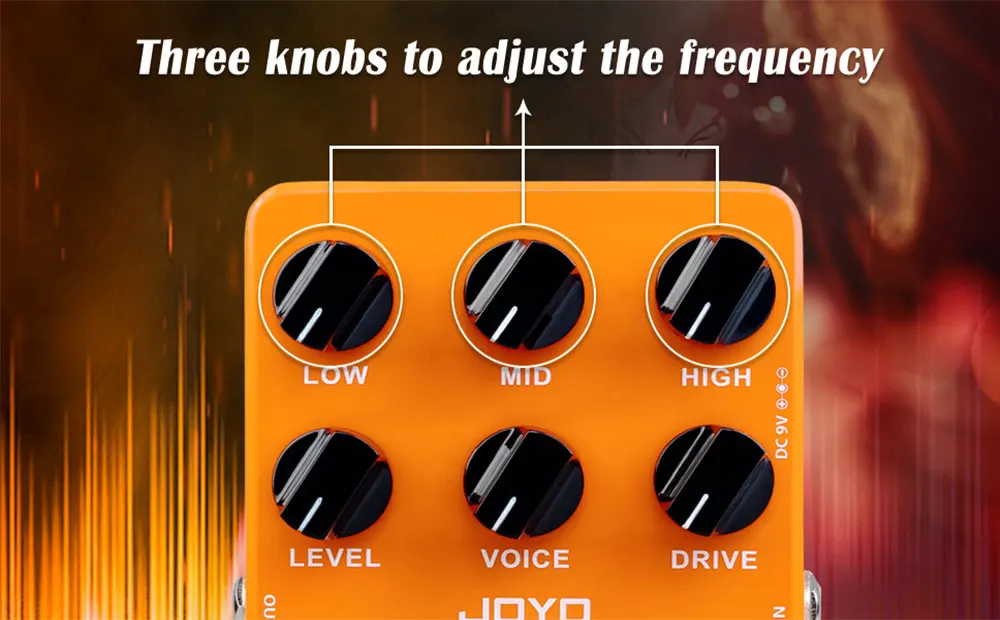

1. MID: adjust the mid frequency
2. LOW: adjust the low frequency

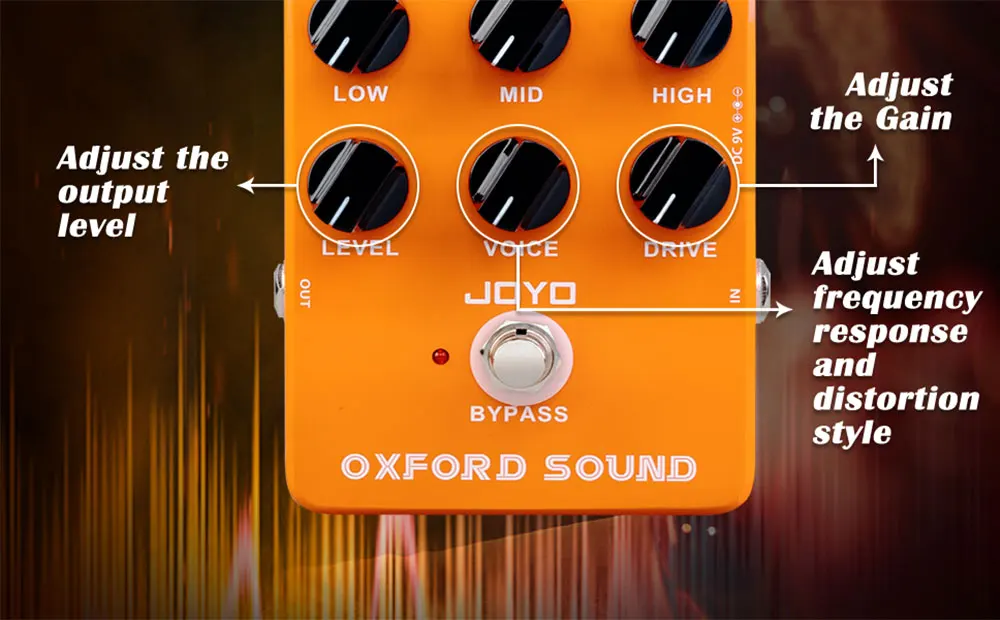

3. VOICE: adjust the frequency response and distortion characteristics, it can simulate various amp tones when used together with DRIVE knob.
4. LEVEL: adjust the output level
5. OUTPUT: 1/4" mono audio jack, outputting the signal.
6. HIGH: adjust the high frequency

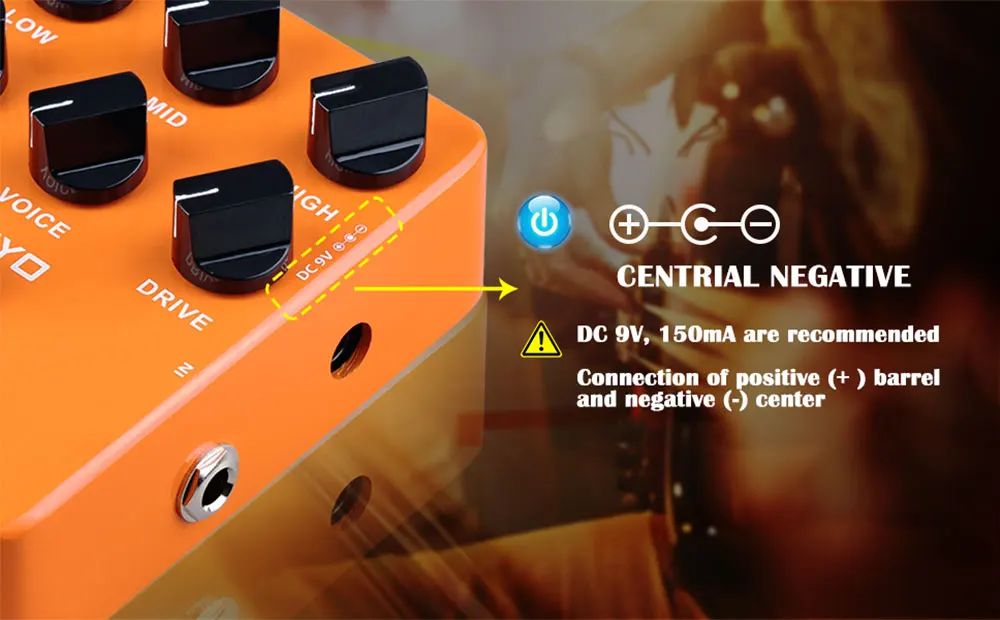

7. Power Jack: for power supply, with 9V DC power adapter(center minus plug).
8. DRIVE: adjust the Gain
9. INPUT: 1/4" mono audio jack, connecting to the guitar.
10. BYPASS Foot switch: press the Foot switch to select the effects.

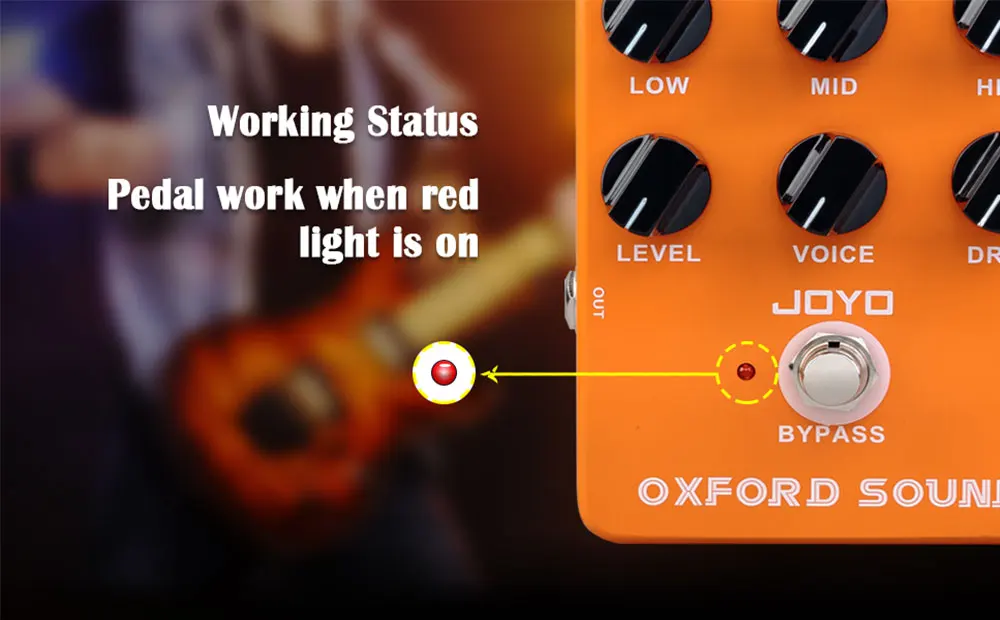

11. LED indicator: it indicates OXFORD SOUND's working status, the effects is turned on when the LED is on.

Package List:

1 *JF-22 guitar pedal
1 *user manual
