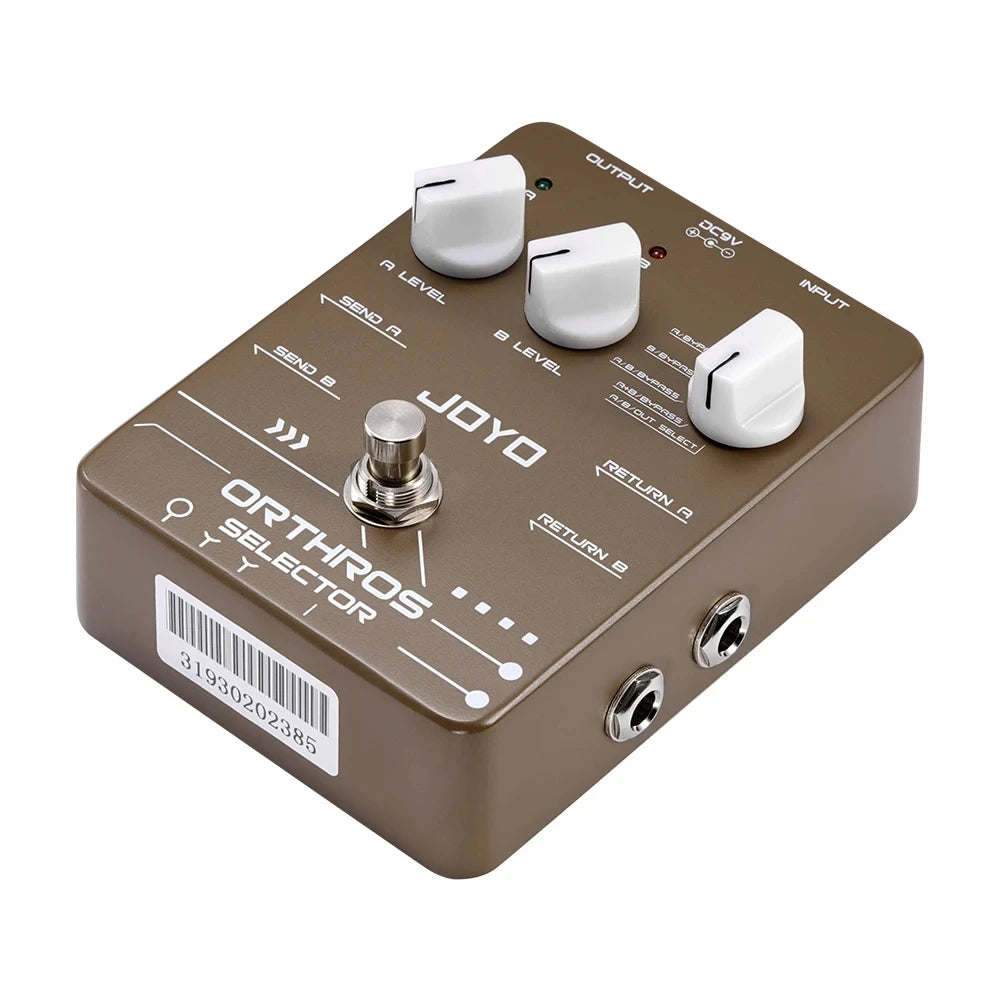

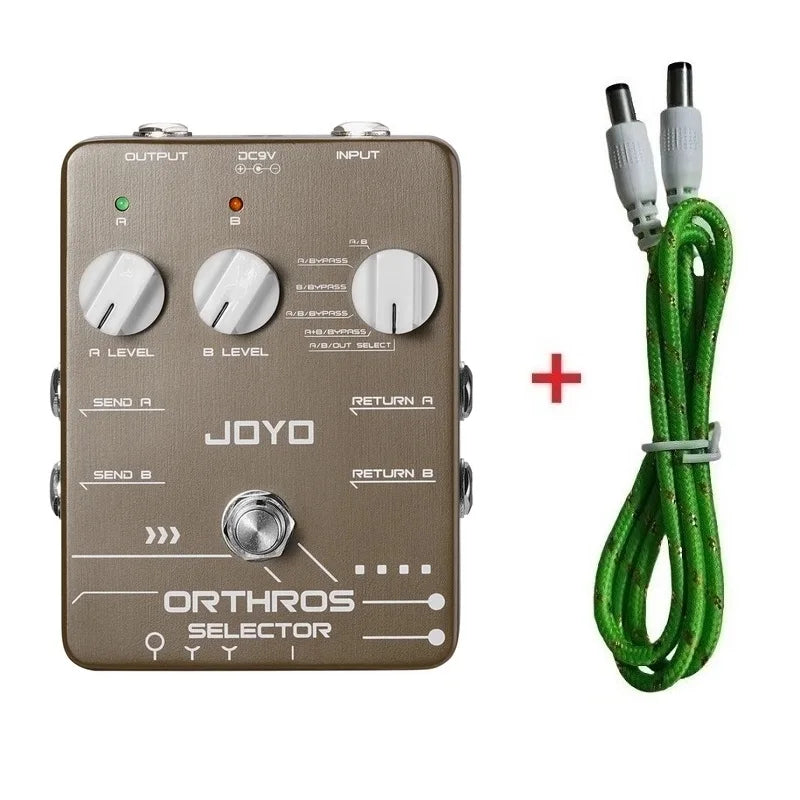

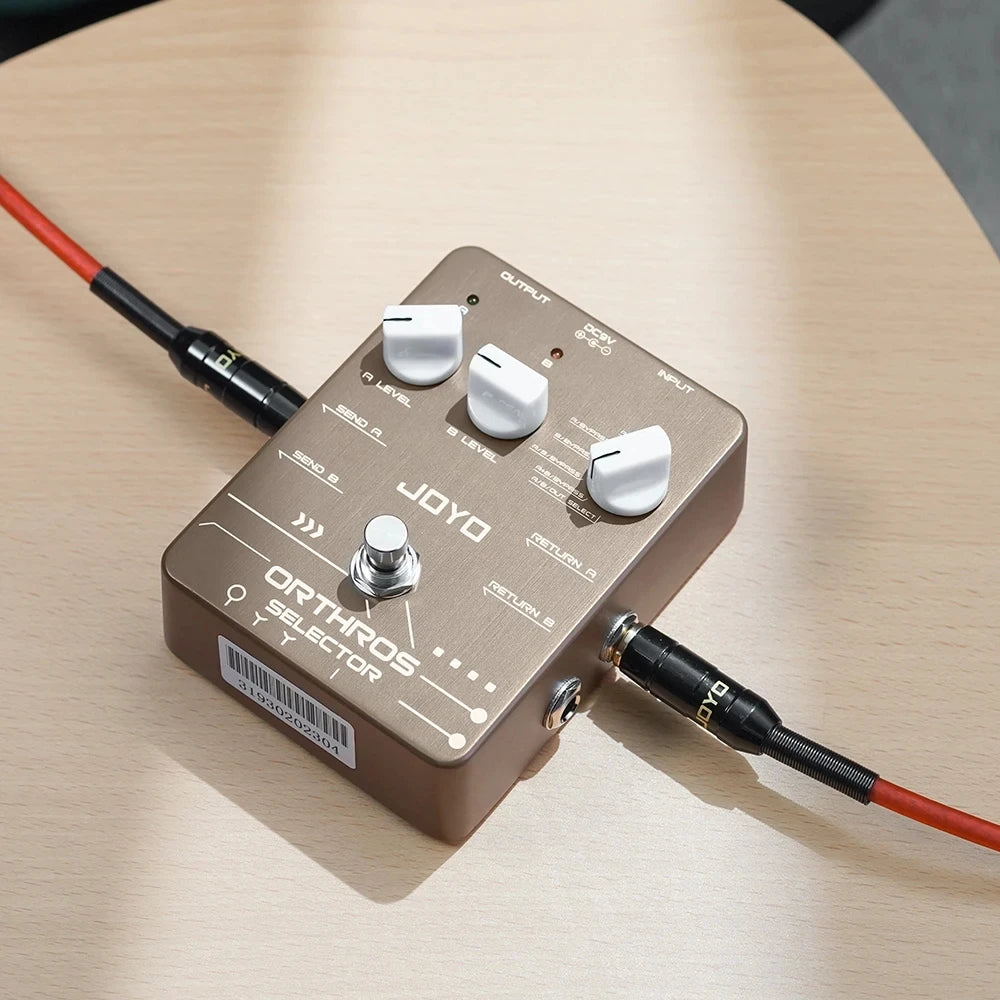

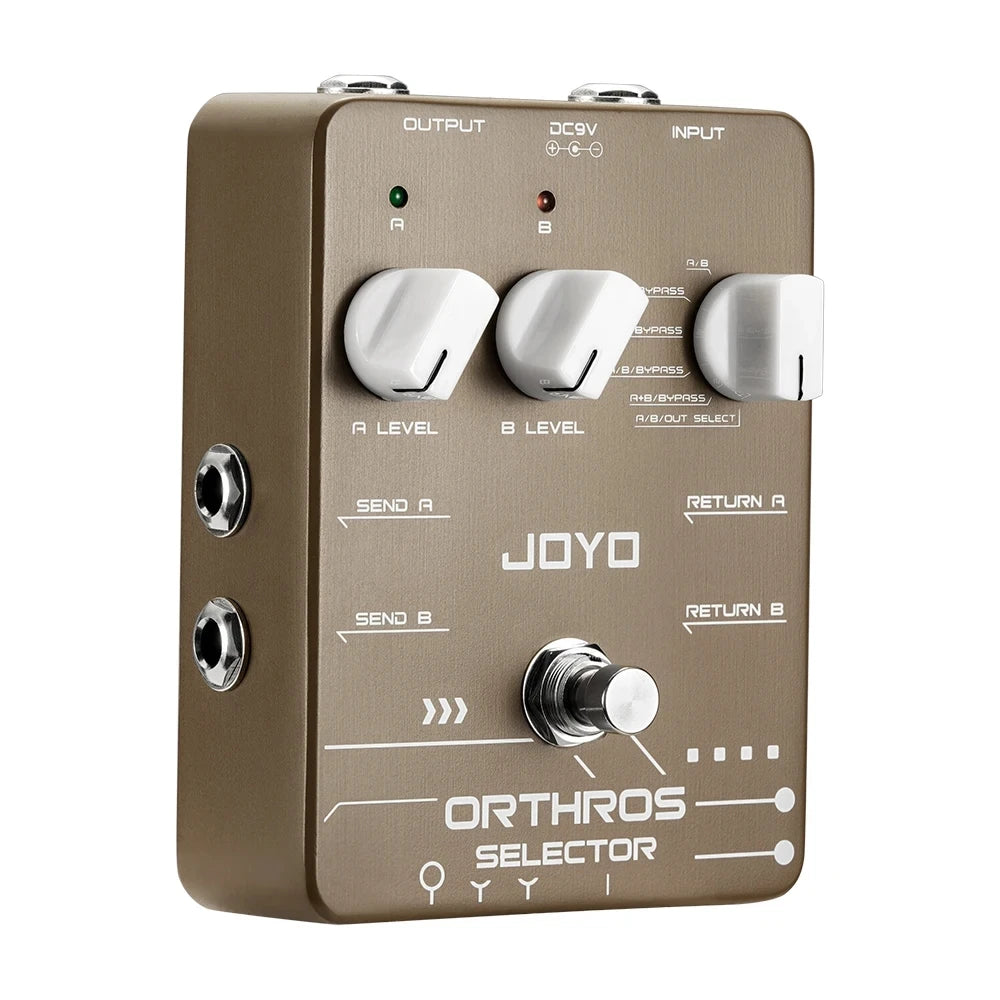

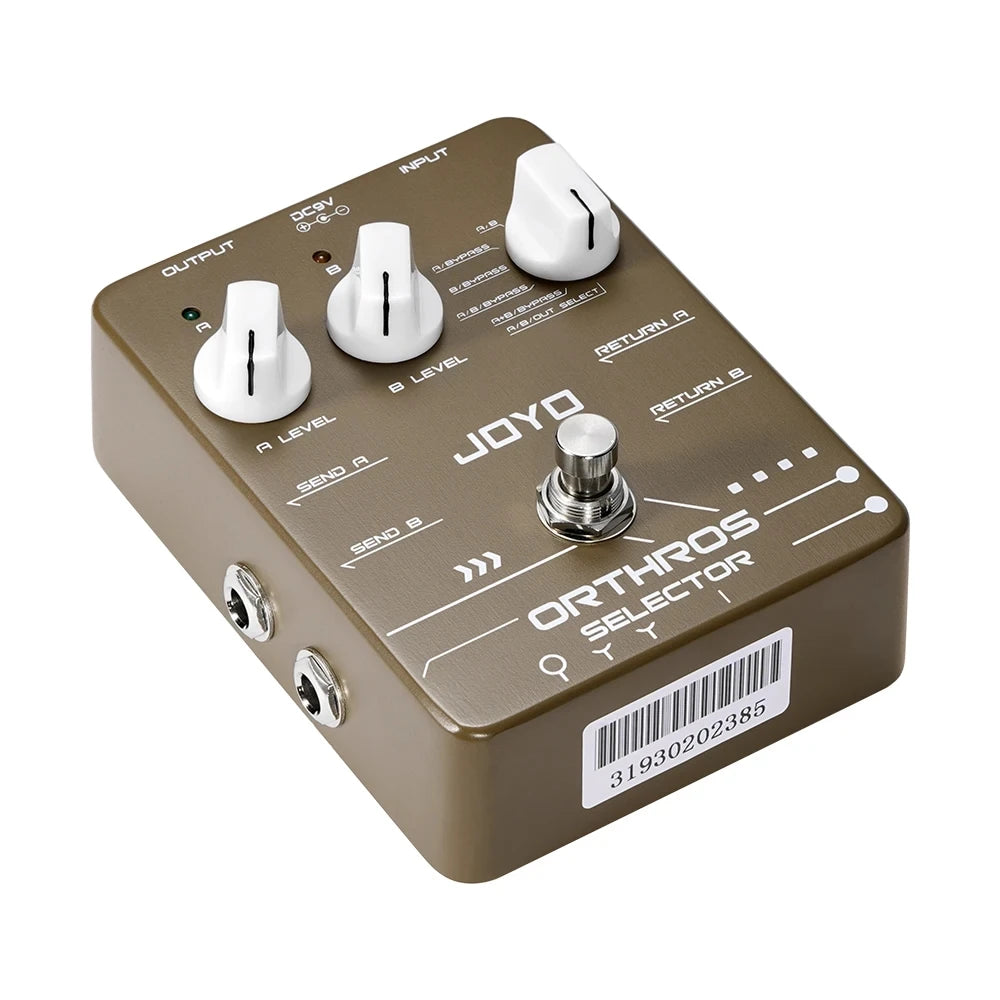

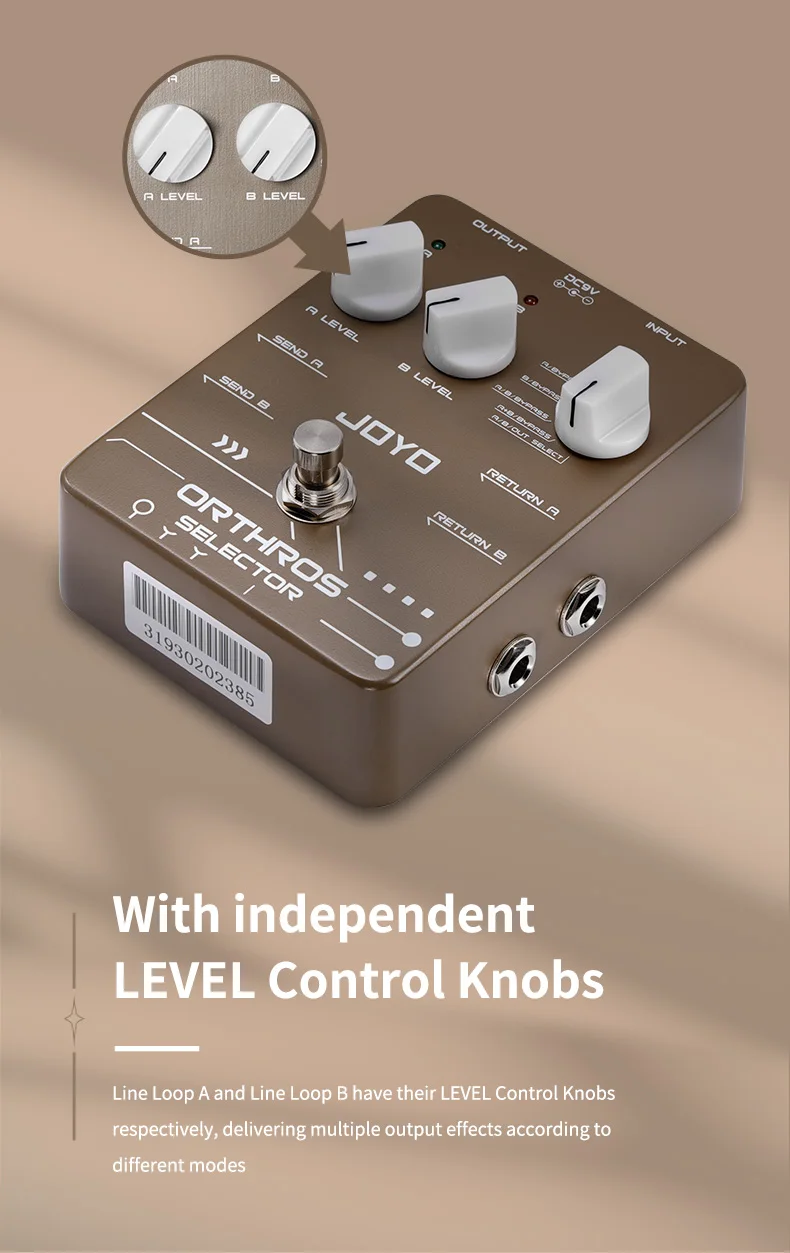

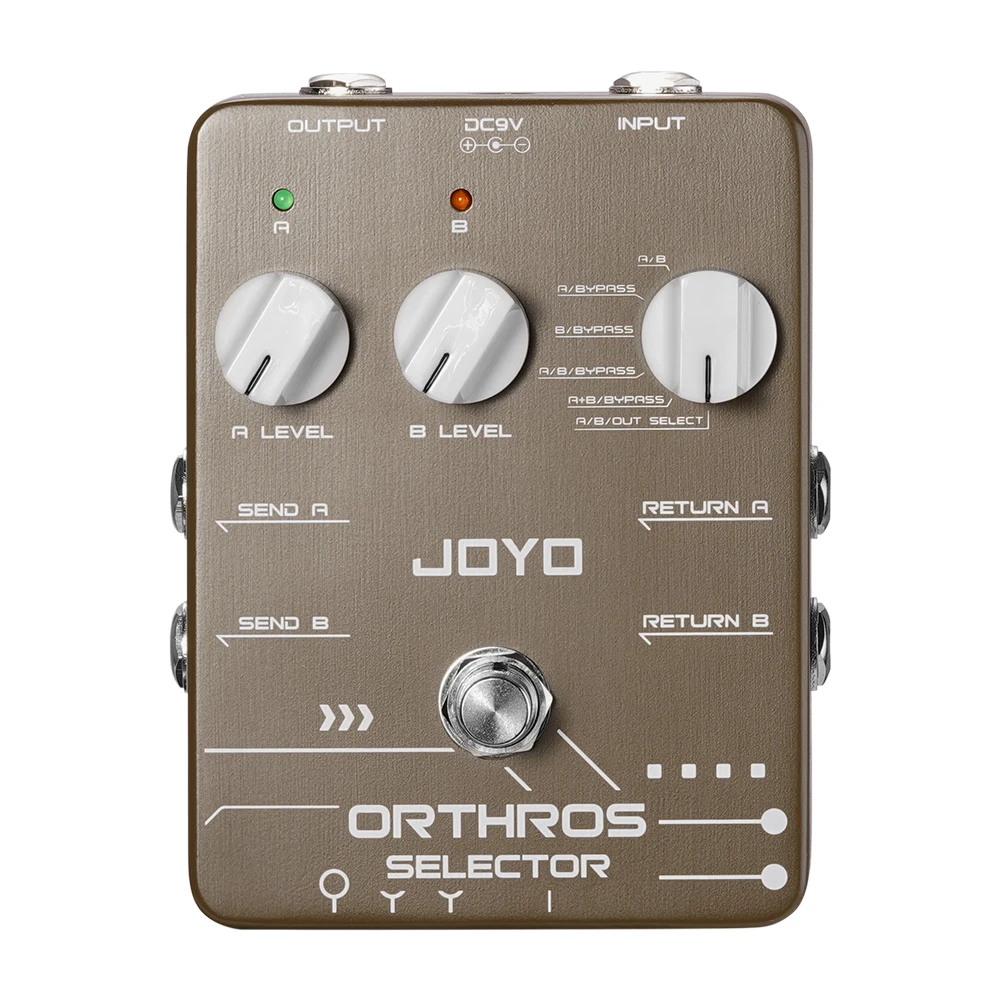

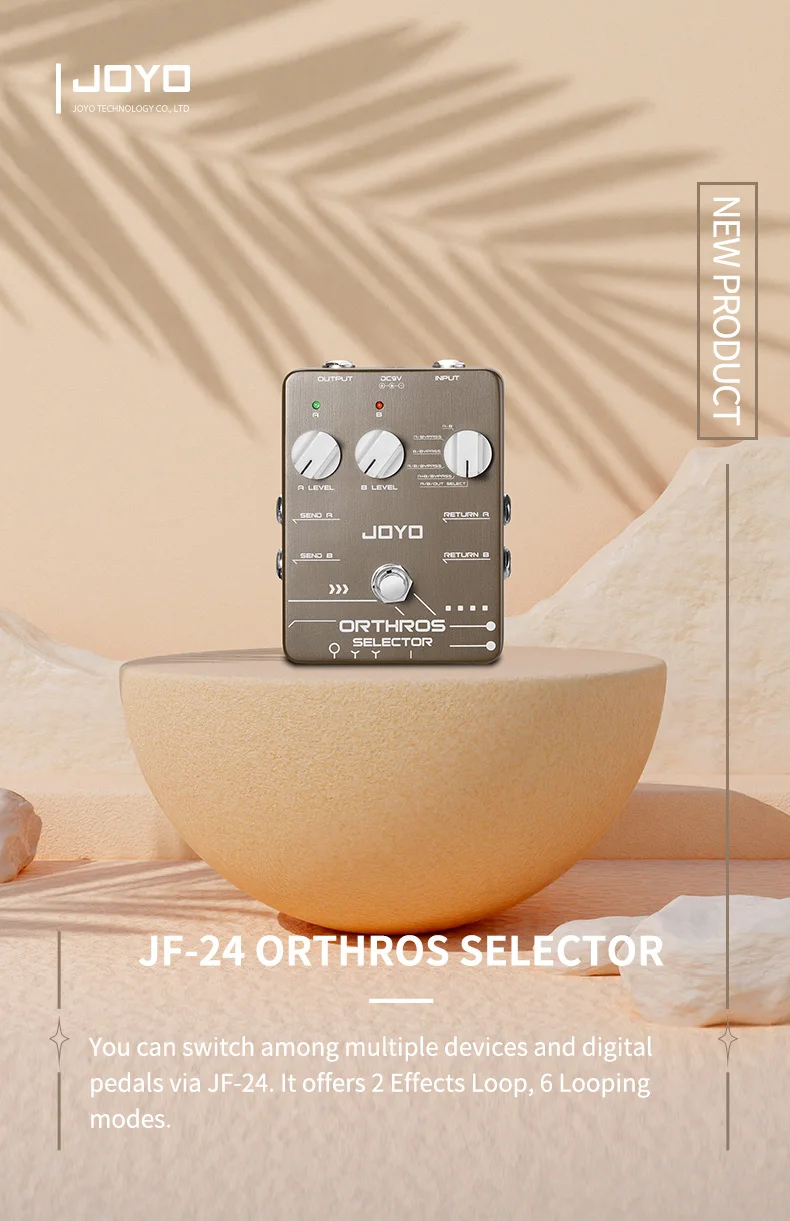

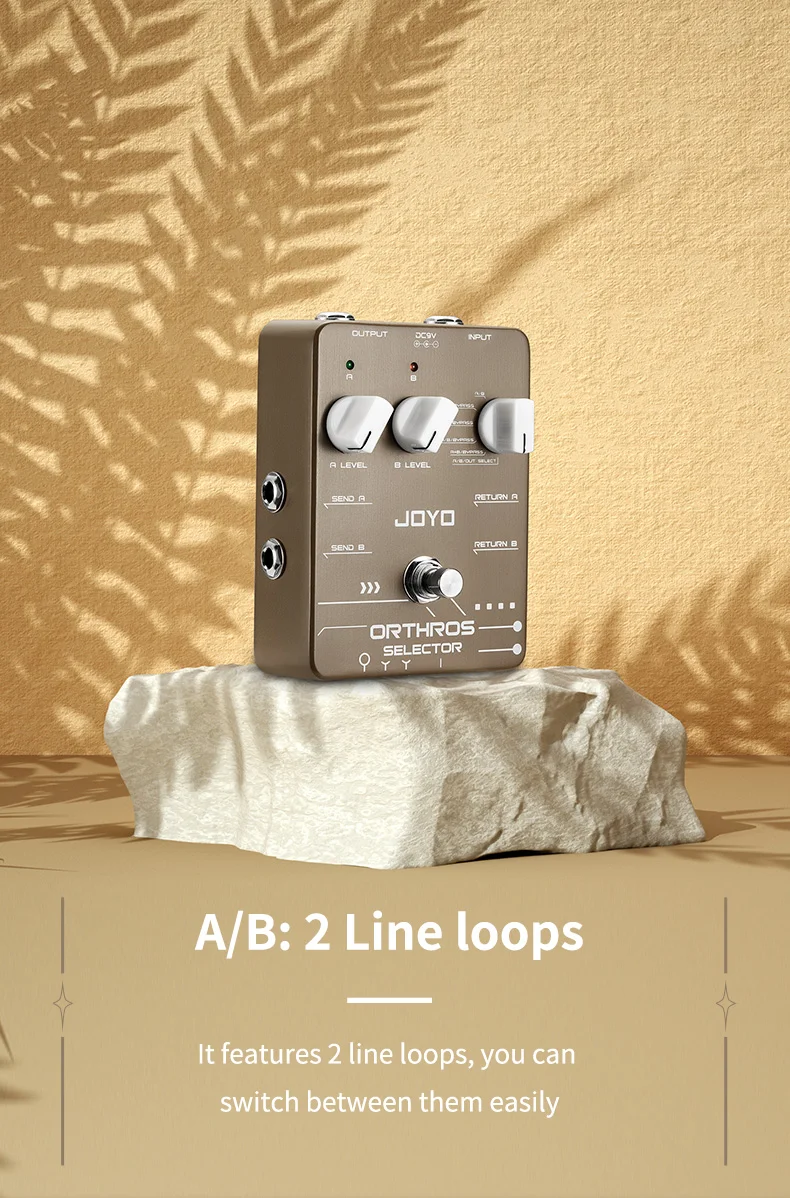

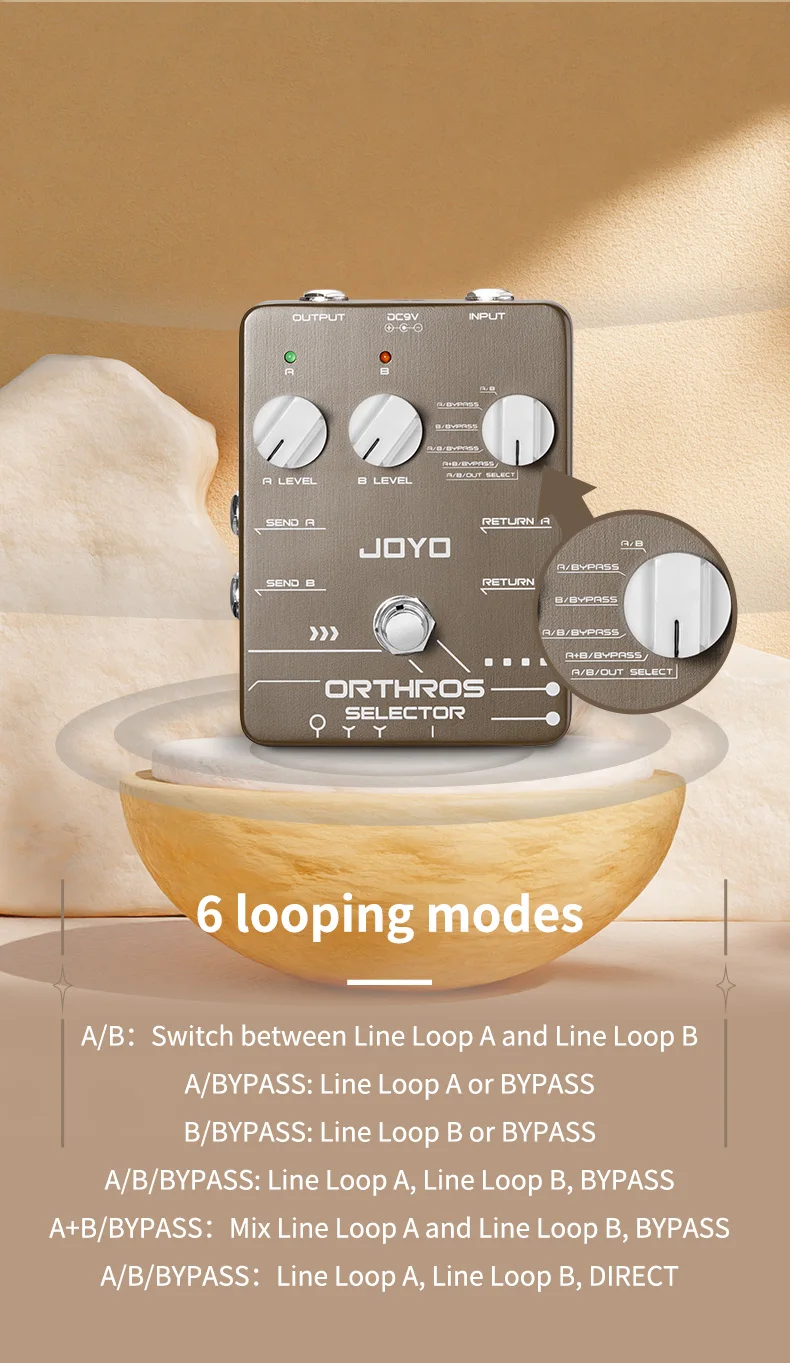

JOYO JF-24 Orthros Selector Guitar Effect Pedal 6 Looping Modes Independent Control Channel Guitar Pedal with A/B 2 Line Loops

Instructions:

1. Connect the Input Jack with the instruments correctly, the effects pedal starts automatically once it's connected properly.
2. The LED indicator is in red when the effects pedal is in use. Please replace the battery once the LED indicator dims or goes out. .

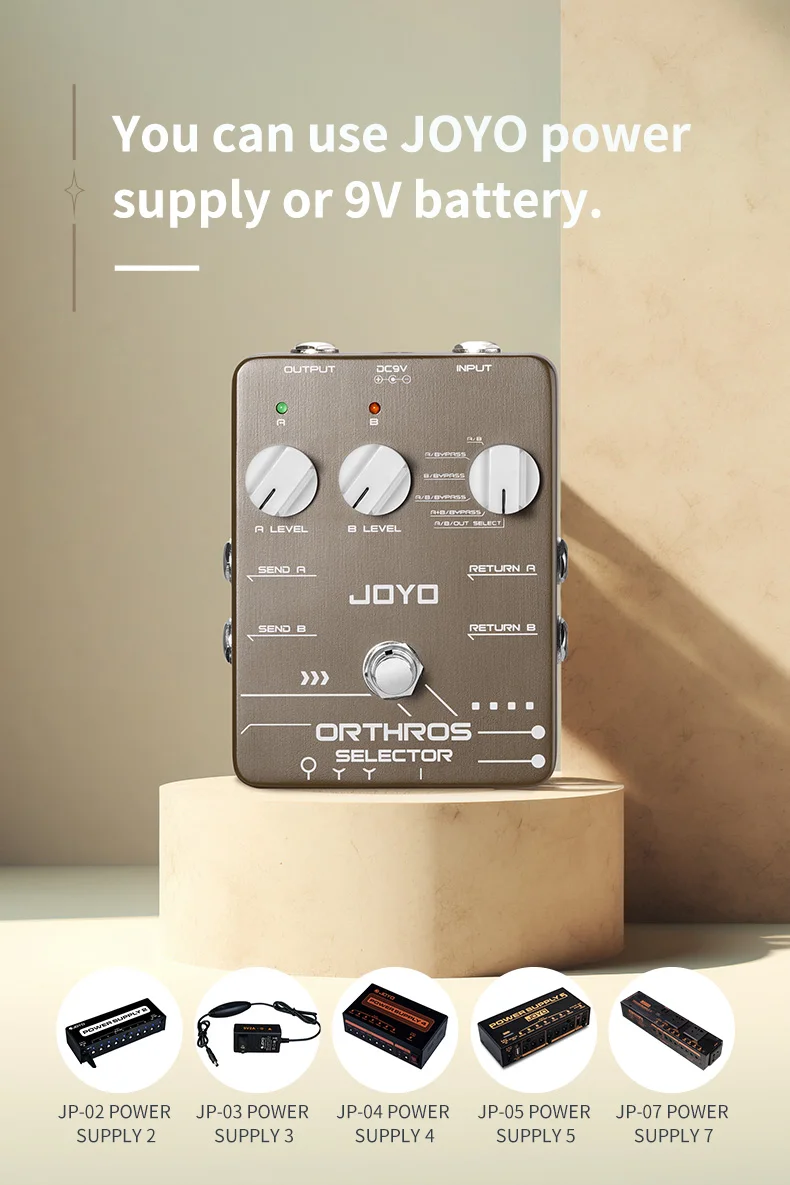

3. Power adapter--The battery supply will be cut off automatically when you use the power adapter.

Specifications:

INPUT: 1/4" Mono Audio Jack(Impedance 1MΩ)
OUTPUT: 1/4" Mono Audio Jack(Impedance 1KΩ)
RETURN A: 1/4" Mono Audio Jack(lmpedance 1MΩ)
SEND A: 1/4* Mono Audio JackImpedance 1KΩ)
RETURN B: 1/4" Mono Audio Jack(Impedance 1MΩ)
SEND B: 1/4* Mono Audio Jack(mpedance 1KΩ)
Power requirements: DC 9V power adapter(Center minus)
Current draw: 22mA
Dimensions: 120mm(L)*97mm(W)*55mm(H)
Weight: 336g

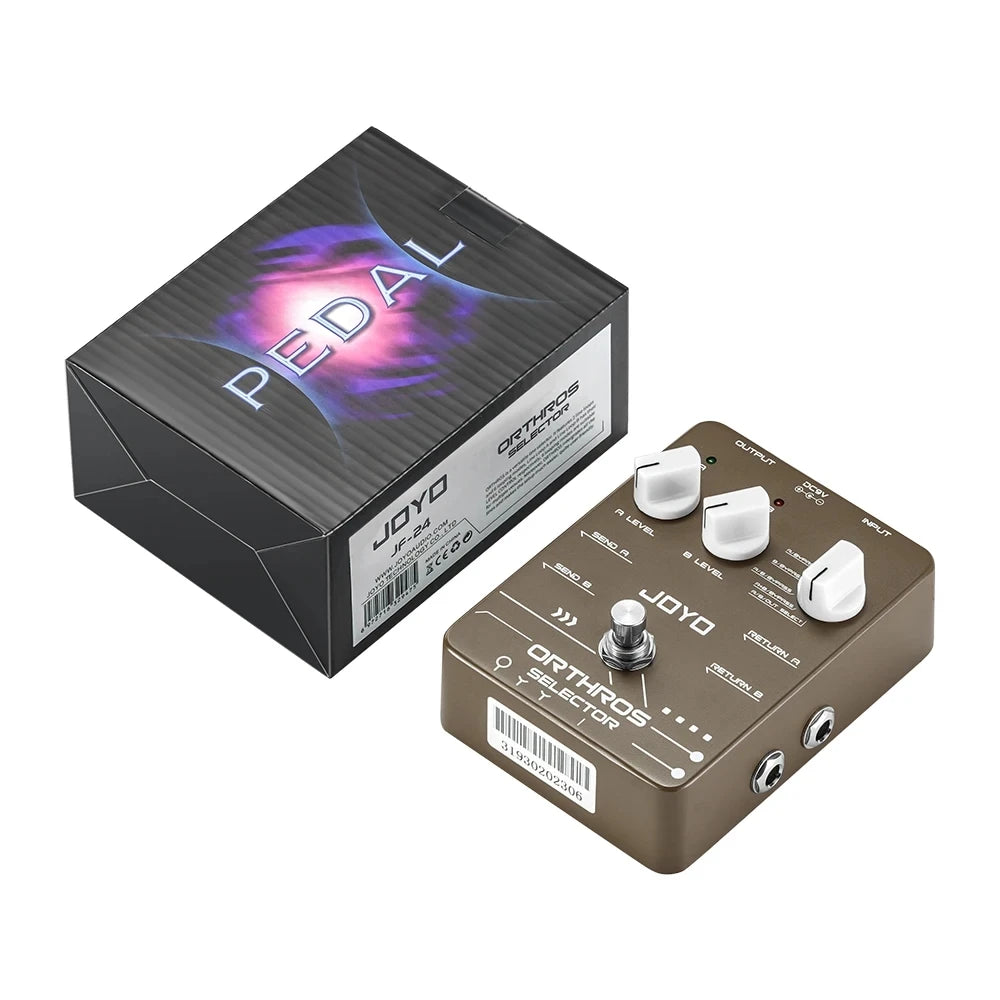

Package List:

1* JF-24 Orthros Selector Guitar Pedal
1* User Manual

Purchase Note:

1. Before you test the pedal or before playing, make sure the guitar is fully connected with the pedal;
2. More importantly, you need to make sure it meets the working current requirement of each single pedal.
3. In order to make JOYO pedals work properly, avoiding unexpected noise caused by power supply, we recommend that you purchase a JOYO original power adapter, or choose other reliable brands.
