Description

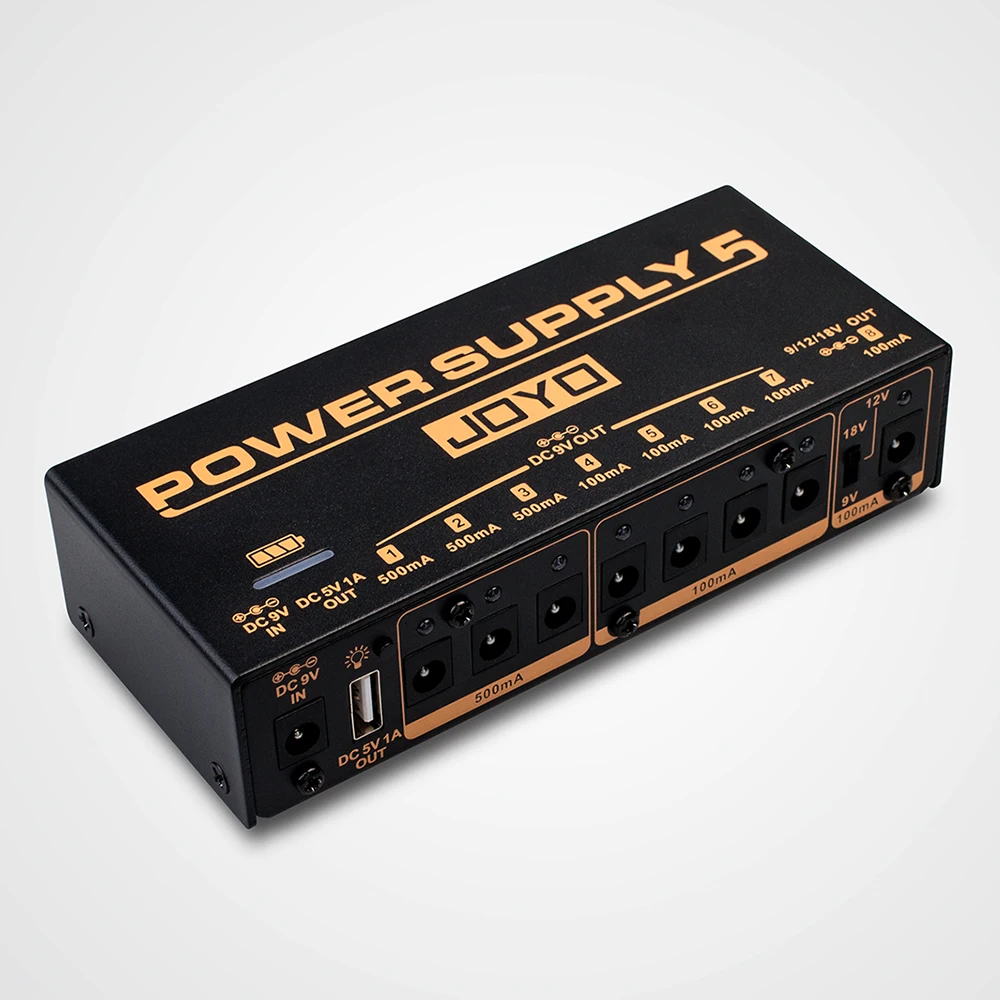

JOYO JP 05 Power Supply features 8 DC outputs, 4 x 100mA 9V, 3 x 500mA 9v and 1 switchable to 9V, 12V or 18V at 100mA., and the 5V USB output enables you to load your cell phone, iPad and other portable devices. To top off the feature list, the power supply has a built in 7.4V/4400 mAh rechargeable battery pack which charges fully in 2.5 hours making sure that you are never without power. Each output of the power supply features independent filters, output overload & short-circuit protection protecting your pedals and filtering out any unwanted noises. DC Outputs 1-3 are 9V centre negative with 500mA each, suitable for many high end digital pedals requiring more oomph and suitable for many standard pedals too requiring less. In theory you could even run a daisy for 5 100mA pedals of each output, that's 15 pedals! If you are thinking of doing that, read our guide on power supplies for best practices. DC Outputs 4-7 are also 9V centre negative with 100ma, suitable for the most guitar pedals at 100mA or less. DC Output 8 can be switched from 9v,12v or 18v at 100ma. So that makes a pretty versatile power supply, useful for guitar effects and other electronic instruments. The JOYO JP-05 is even supplied with a polarity converter for instruments/effects that require a centre positive supply.


- With a built-in 7.4V/4400mAh rechargeable lithium battery pack, charging time is about 2.5hrs.
- Lasts 2 hours with high current digital effect pedals; lasts more than 10 hours with 8 analog pedals.

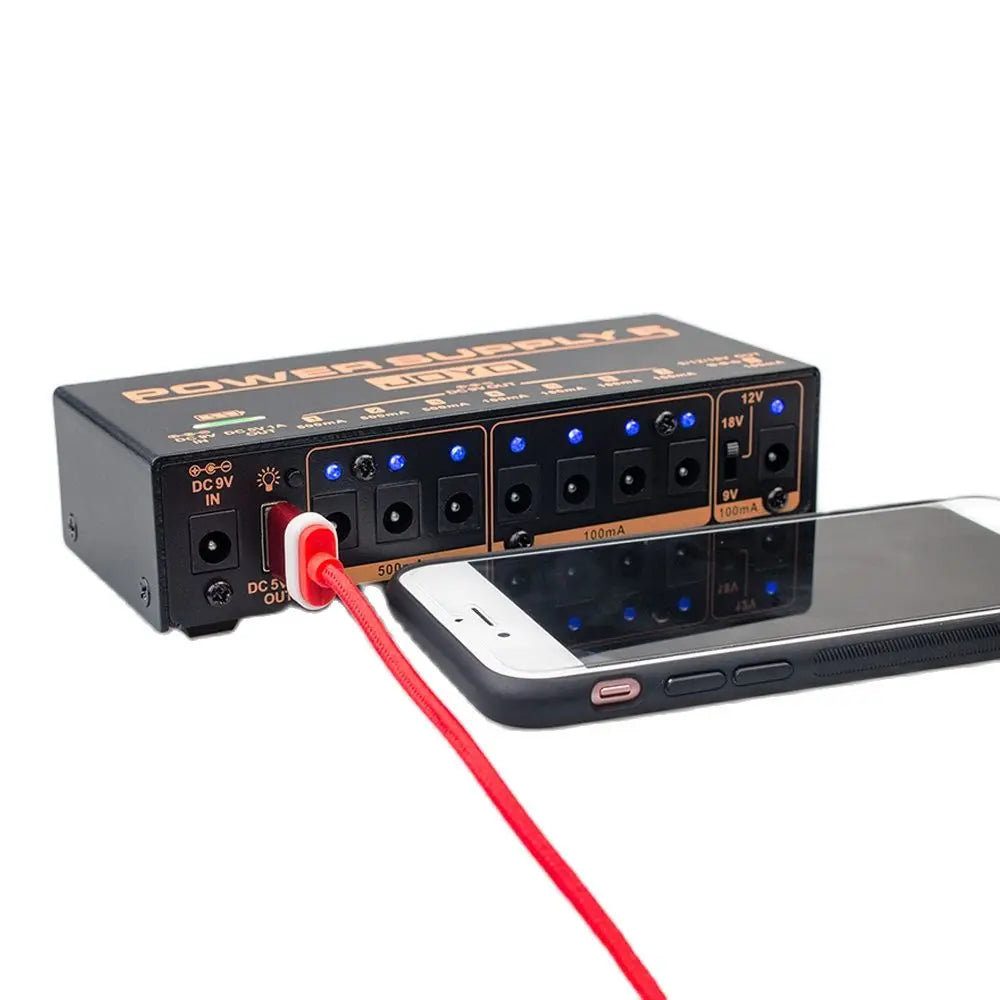

- One 5V/1A output USB port, compatible for charging cell phones, tablets and some other portable devices.

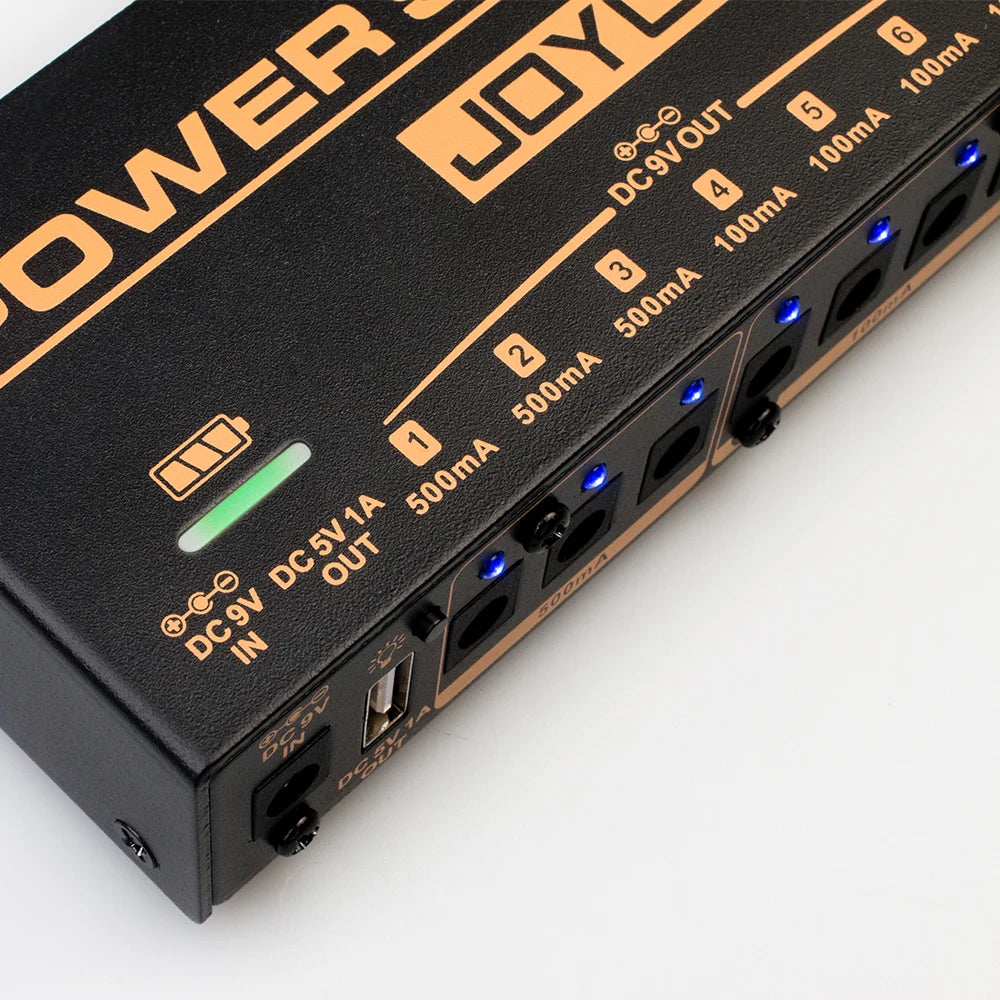

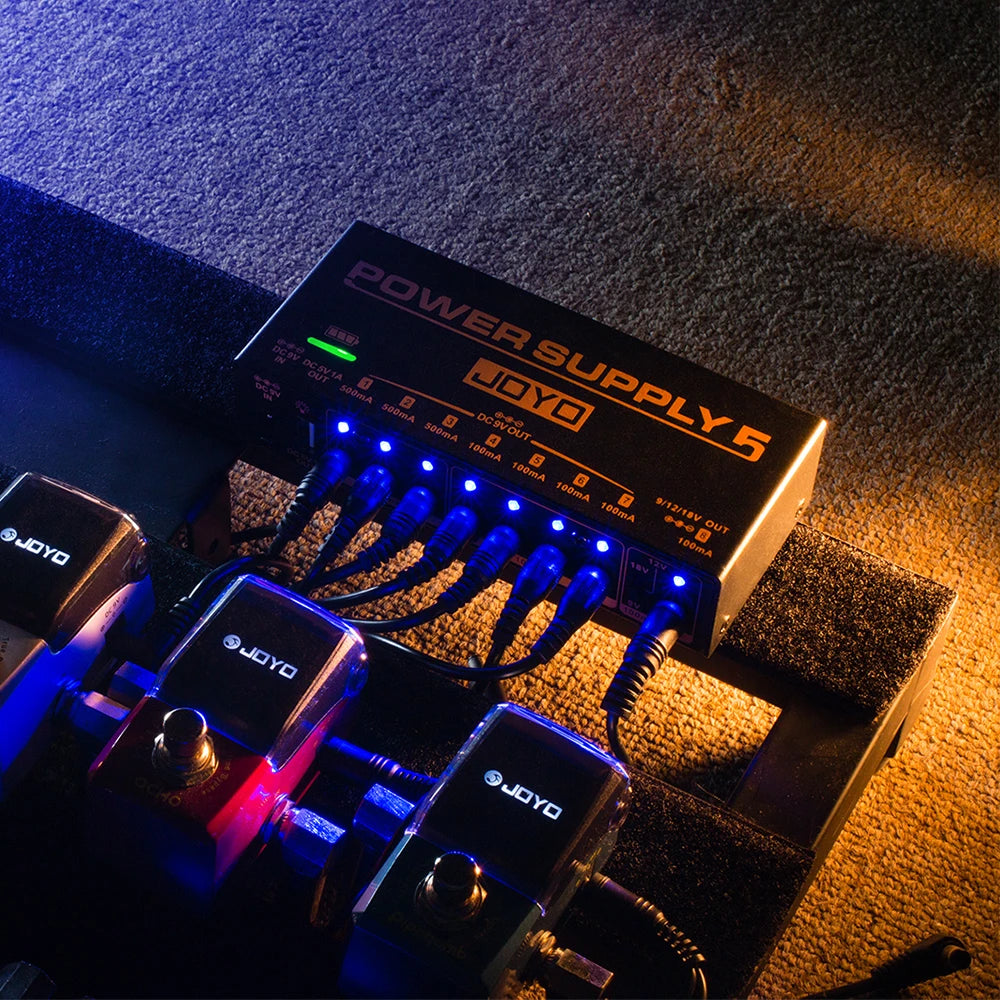

- Bright LED for effect pedal board lighting & battery level indicator, automatically stop charging be fully charged.

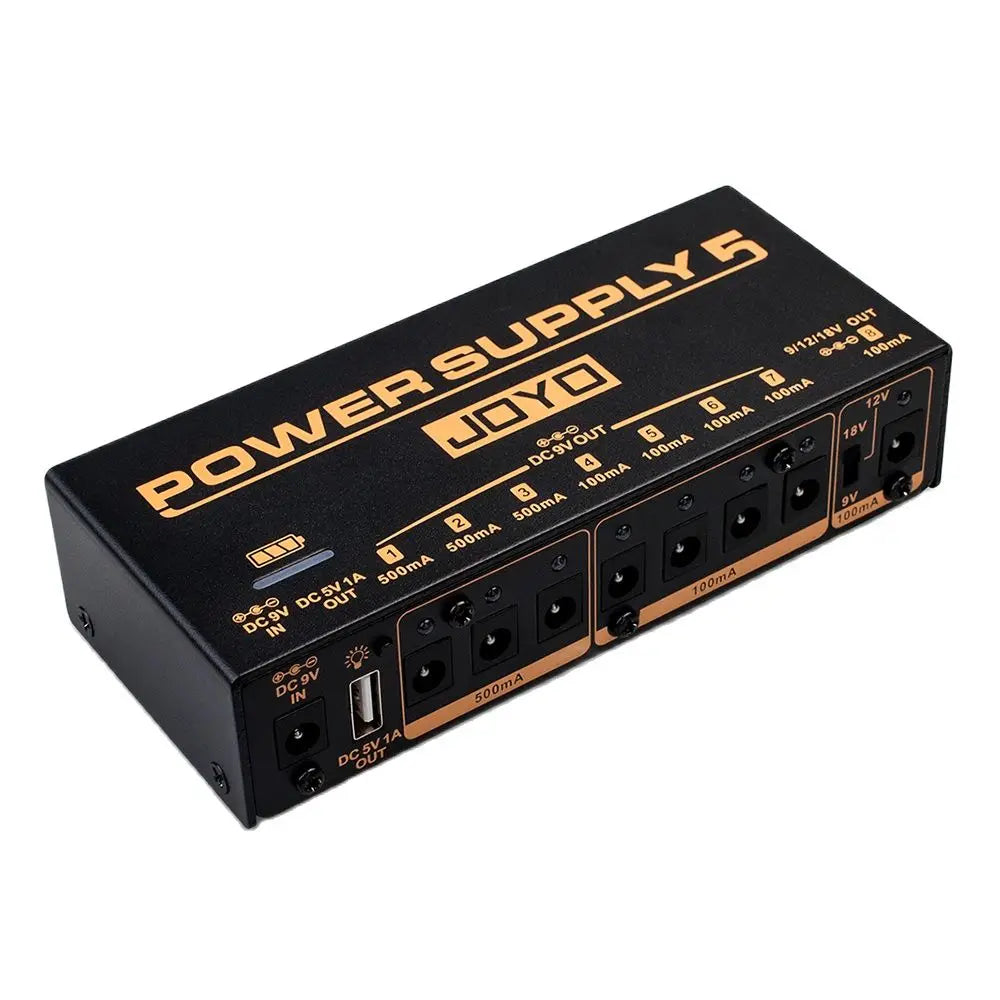

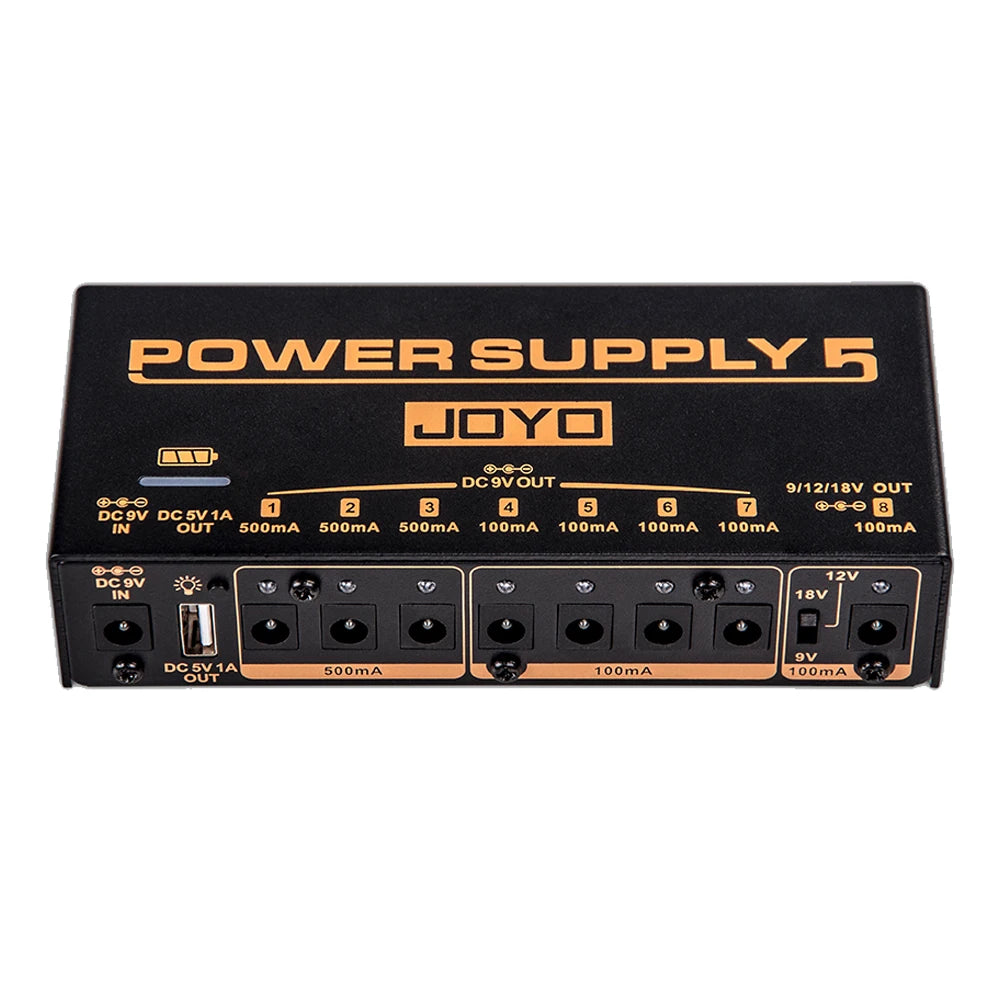

- 8 DC Output Jacks: 4 jacks 9V 100mA; 3 jacks of 9V 500mA; 1 of 9V/12V/18V adjustable output jack,maximum current is 100mA.

Specifications

Input voltage: DC 9V, 2000mA
Output voltage: 9V, 12V, 18V
USB: 5V/1A
Output polarity: external positive and internal negative
Size: 146mm*65mm*35mm
Weight: 620g.

Package List:

1* JOYO JP-05 Guitar Pedal Power Supply

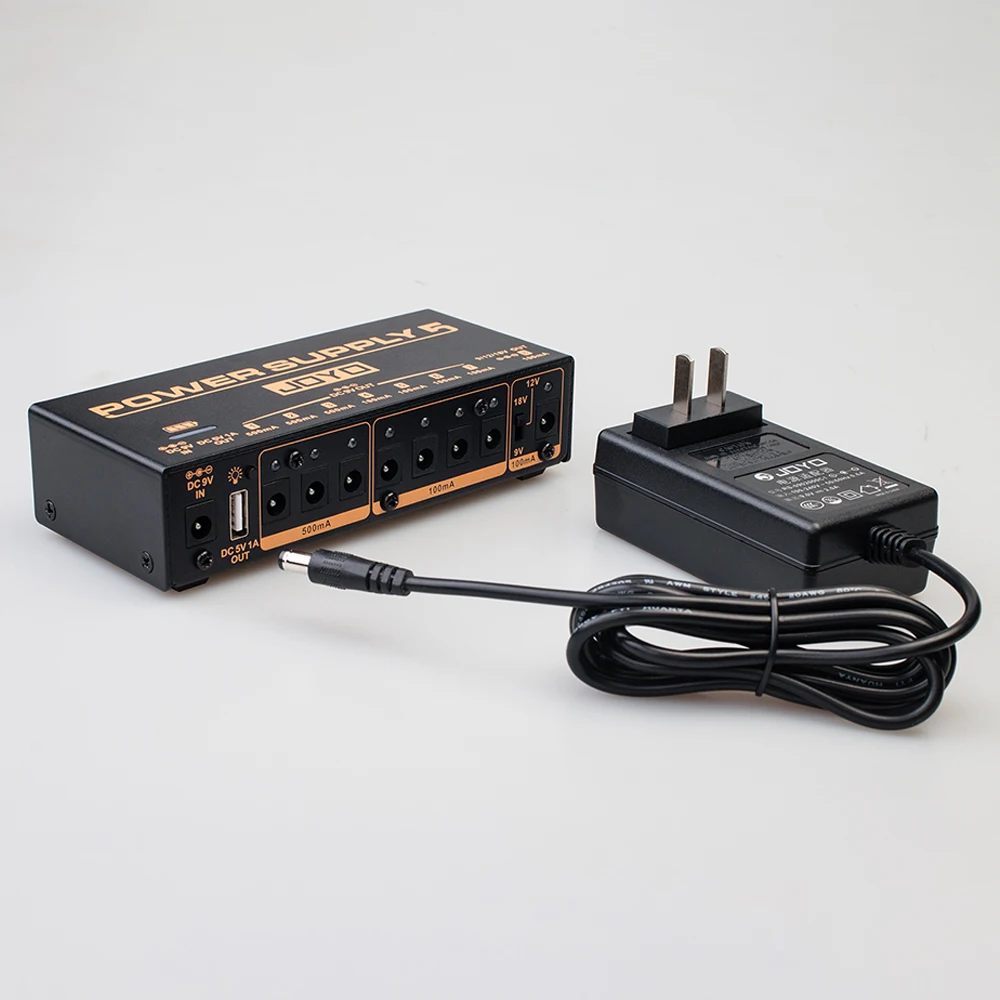

1* DC 9V 2A Charger Adapter
1* Reversed Polarity Cable
8* DC Power Cable
1* User Manual
